digital echo chamber build

I bought a simple digital echo chamber unit a little while ago. It was in the draw gathering dust, so I decided to build it on a quiet Sunday morning a few weeks ago and try it out. I obtained the kit from CPC in the UK when I was ordering some other components... basically to make up the postage costs. It is a Velleman kit and the purchase link for it is here.

Digital Echo Chamber Kit - Whadda | CPC (farnell.com)

Anyway, I managed to build the kit in a couple of hours, and add the connection cables etc. Then I ended up trying out the unit very briefly with a Behringer Crave semi-modular synthesizer. It actually wasn't too bad! I probably wont be using this as a dedicated echo unit in the future, as I have access to a number of other effects processors. But, I do want to try and modify this kit to add CV (control voltage) inputs for the delay and feedback controls. I would then like to use the unit with some other modular gear.

Some pictures of the build process and the finished kit are shown below, there is also a link to a brief video demo of the unit. If you like the video, please try and check out some of the others, and Please Subscribe, if you can. Thanks.

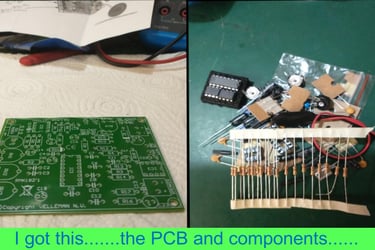

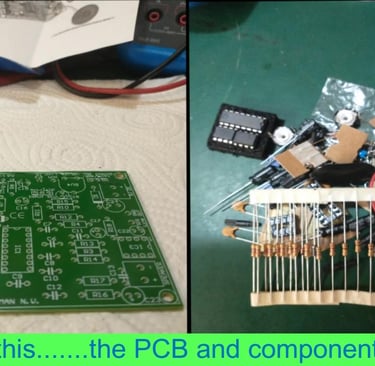

Components and PCB

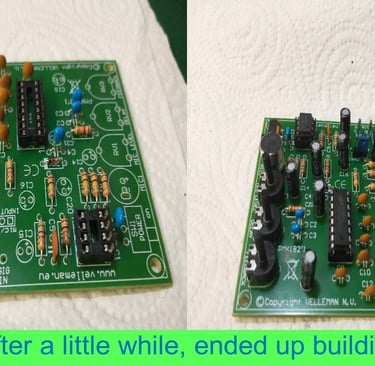

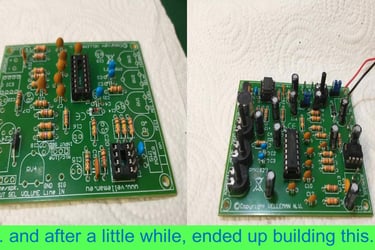

Almost finished kit

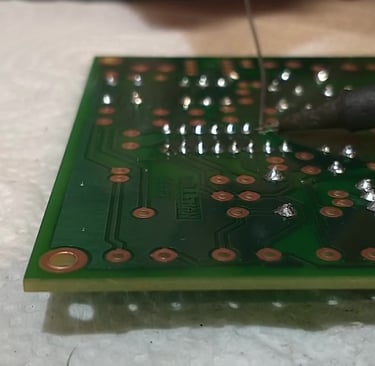

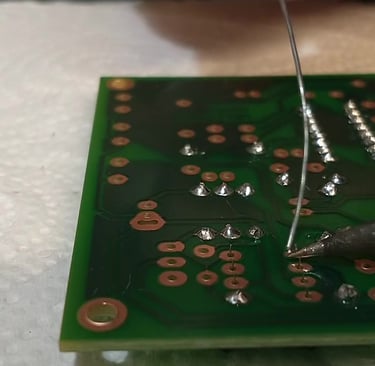

IC socket soldering

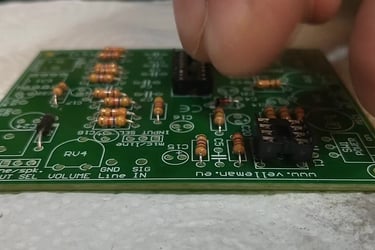

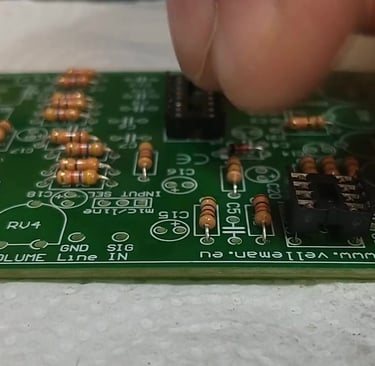

IC socket placement

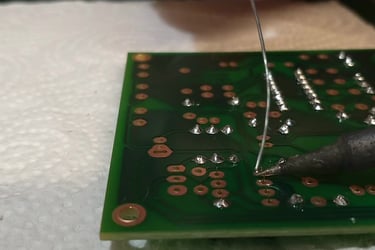

More IC socket soldering

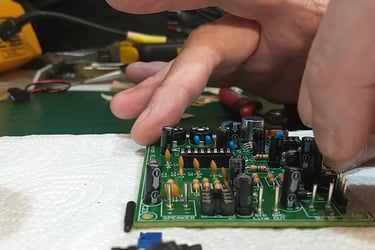

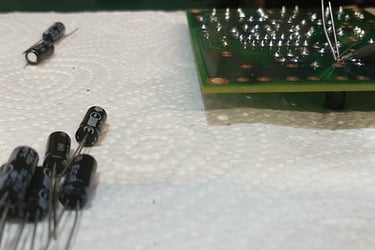

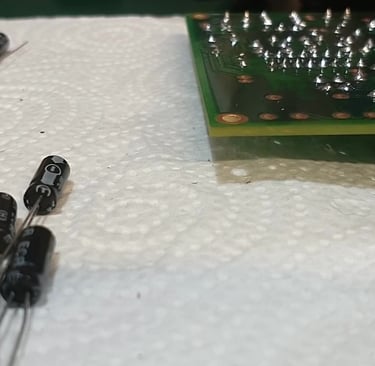

Capacitor placement

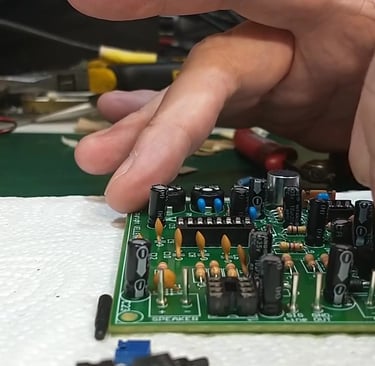

Inserting delay line IC

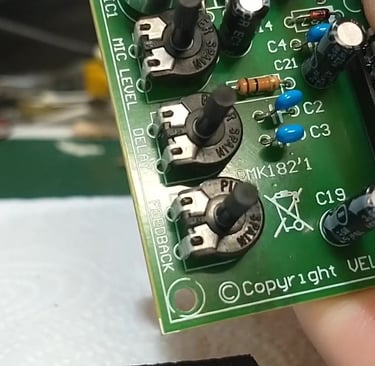

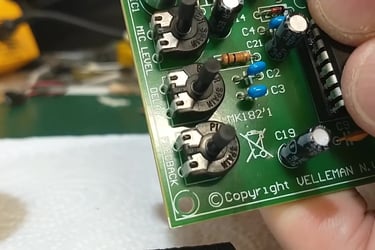

Inserting pot adjusters.

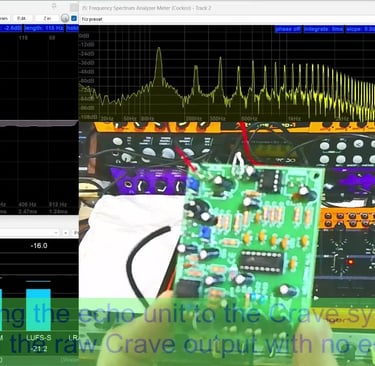

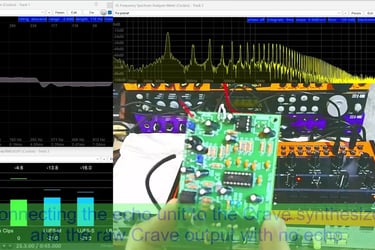

Testing the unit with a Crave

The final testing video.
